Features
＊Supports a 32-bit 3.3 V or 5 V PCI bus
＊12-bit multiplying D/A resolution
＊Up to 1 MS/s simultaneous- rate
＊4-CH multiplying analog outputs (DAQ-2501)
＊8-CH multiplying analog outputs (DAQ-2502)
＊Hardware-based arbitrary waveform generation
＊On-board 8 k-sample D/A FIFO (DAQ-2501)
＊On-board 16 k-sample D/A FIFO (DAQ-2502)
Introduction
ADLINIK DAQ-2501 and DAQ-2502 are high-speed and high-performance
analog output multifunction DAQ cards. The devices are able to up to 8-
CH, 12-bit analog outputs simultaneously at sustaining 1 MS/s. The reference
sources and the output polarities are programmable on per channel basis,
combining with the multiplying DAC architecture, ADLINK DAQ-2500 series DAQ
cards can generate complex modulated analog signals. The hardware-based
arbitrary waveform generation frees the CPU intervention even when all analog
outputs are updating at full speed, and the lengths of waveforms are only
limited by the system memory. The DAQ-2500 series integrate up to 8-CH, 400 kS/s, 14-bit single-ended analog inputs with programmable polarity, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose
timer/counters.
Ordering Information

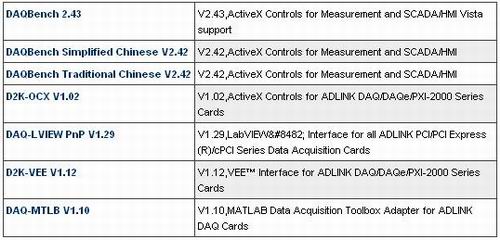

Associated Software
